Bayview Outdoor Kitchen

• 6 Matt vitreous cast iron burners, 90mj (15mj x 6) with integrated flame tamer
• Super-fast heat up with electronic ignition
• Monitor and perfect your cook with the viewing window, temperature gauge, and internal lighting system
• Height adjustable warming / cooking rack
• Large cooking area 5201 cm²
• Cast iron, matt vitreous enamel hot plate, grill plate and baking dish
• Space saving - front slide out drip tray for no mess cooking
• Minimalist design - streamlined storage compartments, sink, tap & chopping board
• Rust proof construction (304 grade stainless steel)
• Flame safeguard system
• UV protected
• Available in LPG or Natural Gas
• Easy to assemble
• 5* WELS rated tap, Watermark approved sink waste
• 5 Year conditional warranty

Outdoor Kitchen Materials:
Benchtop made from Sintered stone - a durable, man-made material designed to withstand the toughest conditions, making it perfect for outdoor spaces. Created by compressing natural minerals at high temperatures, it offers the beauty of natural stone with added benefits like UV stable: It won’t fade or yellow, even with sun exposure & Fire- and weather-proof: Ideal for both indoor and outdoor use, it stands up to the elements year-round.

Cabinets made from Zinc Coated cold rolled powder coated steel - highly durable and corrosion-resistant material, the process begins with an electrolytic zinc coating that protects the steel from rust and corrosion, followed by a powder coating paint colour applied electrostatically and cured for an extra layer of durability. This combination creates a strong, long-lasting finish.

Barbeque Module
1 x Left Countertop
1 x Rear Top Panel
1 x Right Countertop
2 x Sink Separation Panel
1 x Separation Panel
1 x Rear Panel
2 x Support Plate
2 x Side Panel
1 x Base Panel
1 x Front Panel
1 x Drawer Assembly
1 x Sink + Waste
1 x Tap Set
2 x Bin

Beverage Cooler Module
1 x Table Top
1 x Back Panel
1 x Left Panel
1 x Right Panel
2 x Stiffener Rib
1 x Decorative Strips
1 x Refrigerator

• EBMK6LPG: Full Kit (Standard Beverage Cooler) LPG Variant
• EBMK6LPGTR: Full Kit (Tropical Rated Beverage Cooler) LPG Variant
• EBMK6NGG: Full Kit (Standard Beverage Cooler) Natural Gas Variant
• EBMK6NGGTR: Full Kit (Tropical Rated Beverage Cooler) Natural Gas Variant
• EBMK6LPG-BBQ: BBQ Module Only LPG variant
• EBMK6NGG-BBQ: BBQ Module Only Natural Gas Variant
• NBLPC-17: BBQ Built in LPG Variant
• NBNGC-17: BBQ Built in Natural Gas Variant
• EBCMG: Beverage Cooler Module (does not include beverage cooler)
• NBC208SS: Beverage Cooler
• NBC208HFSS: Tropical Rated Beverage Cooler

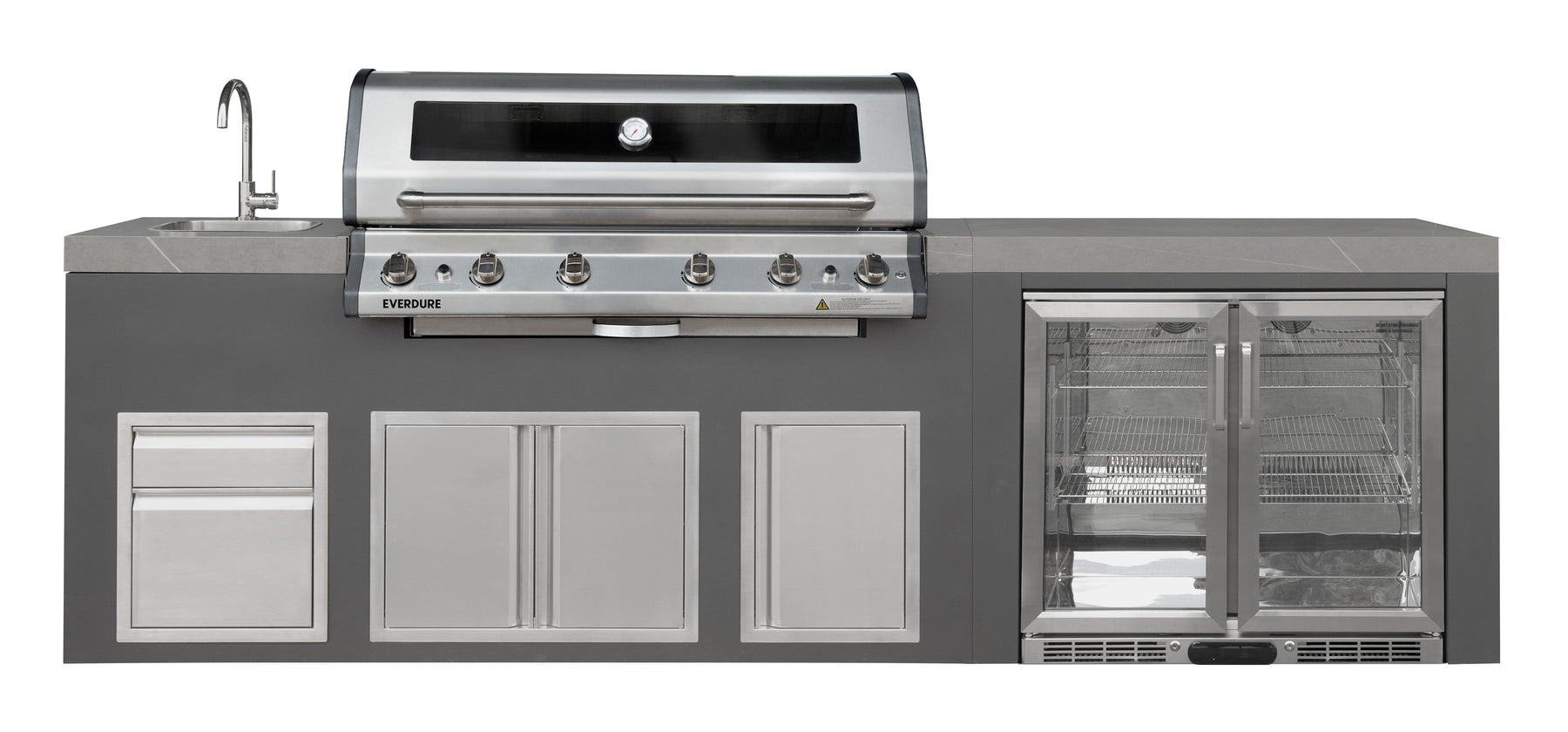

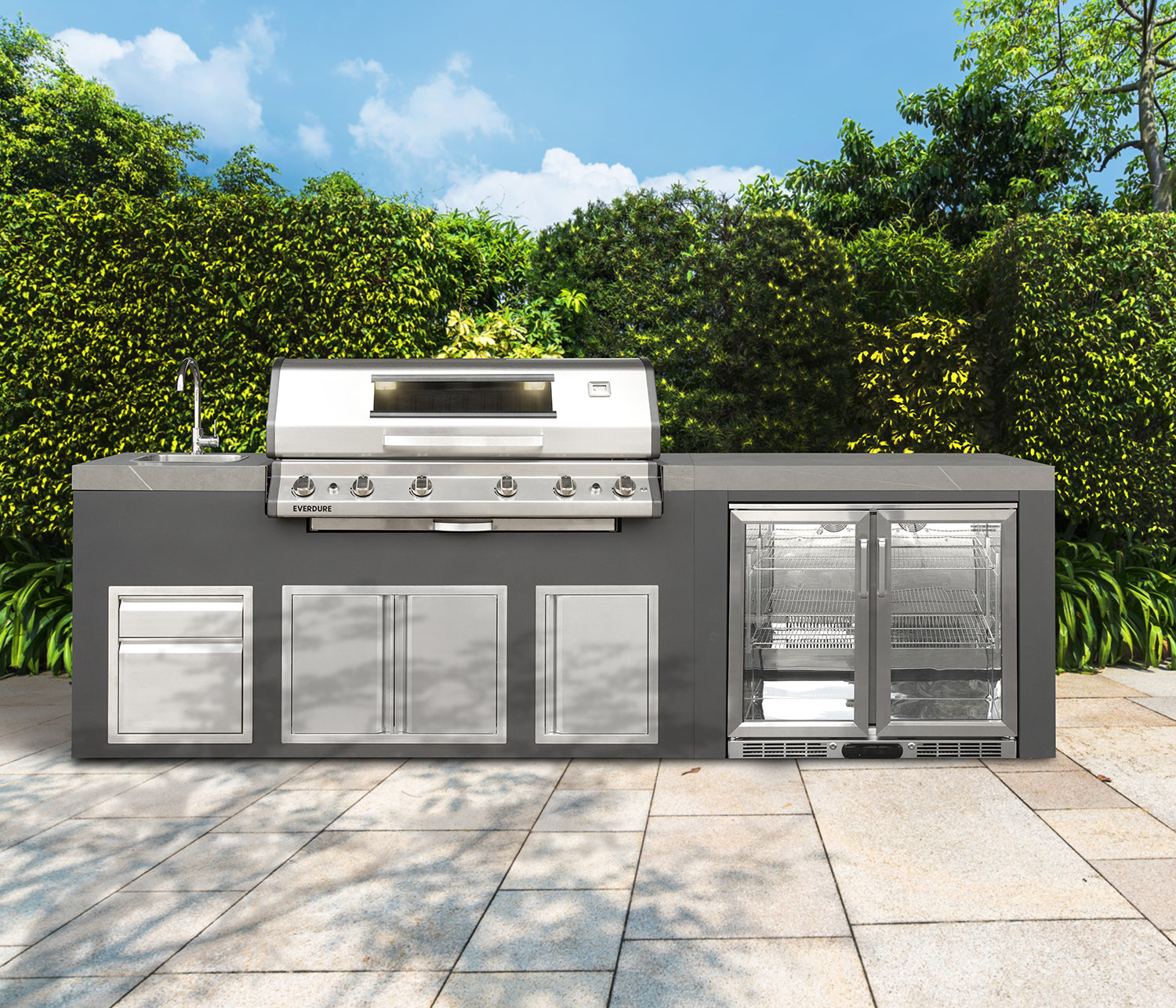

Full Kit (EBMK6LPG & EBMK6NGG)
• Width: 3078mm
• Depth: 598mm
• Height: 1310mm

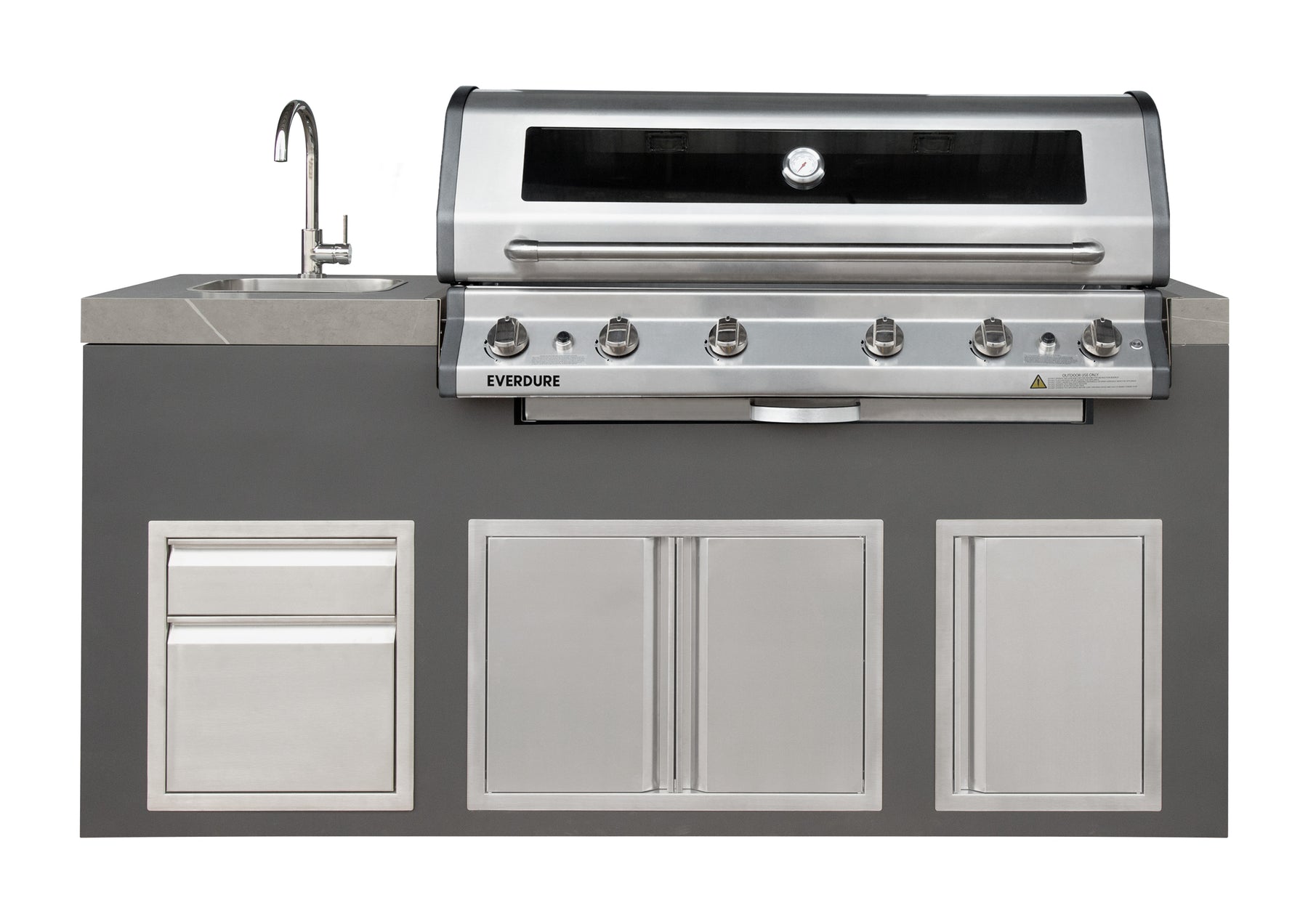

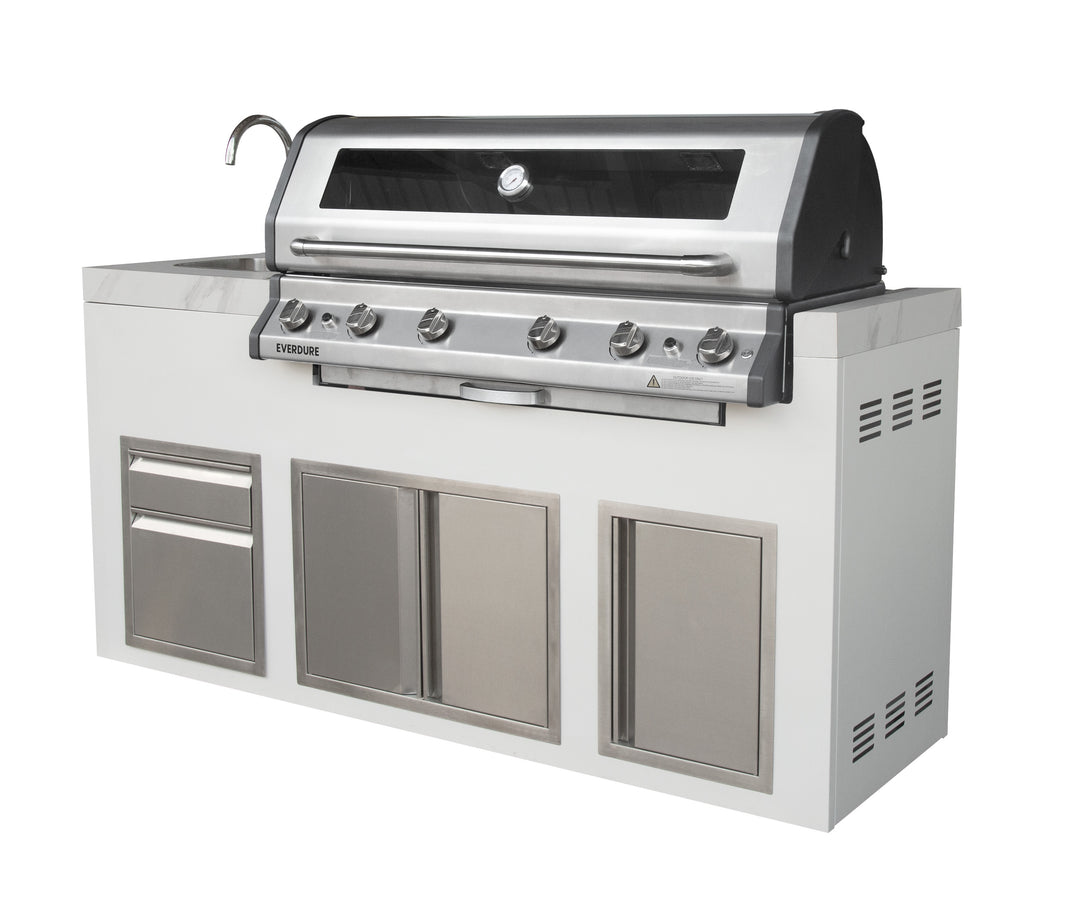

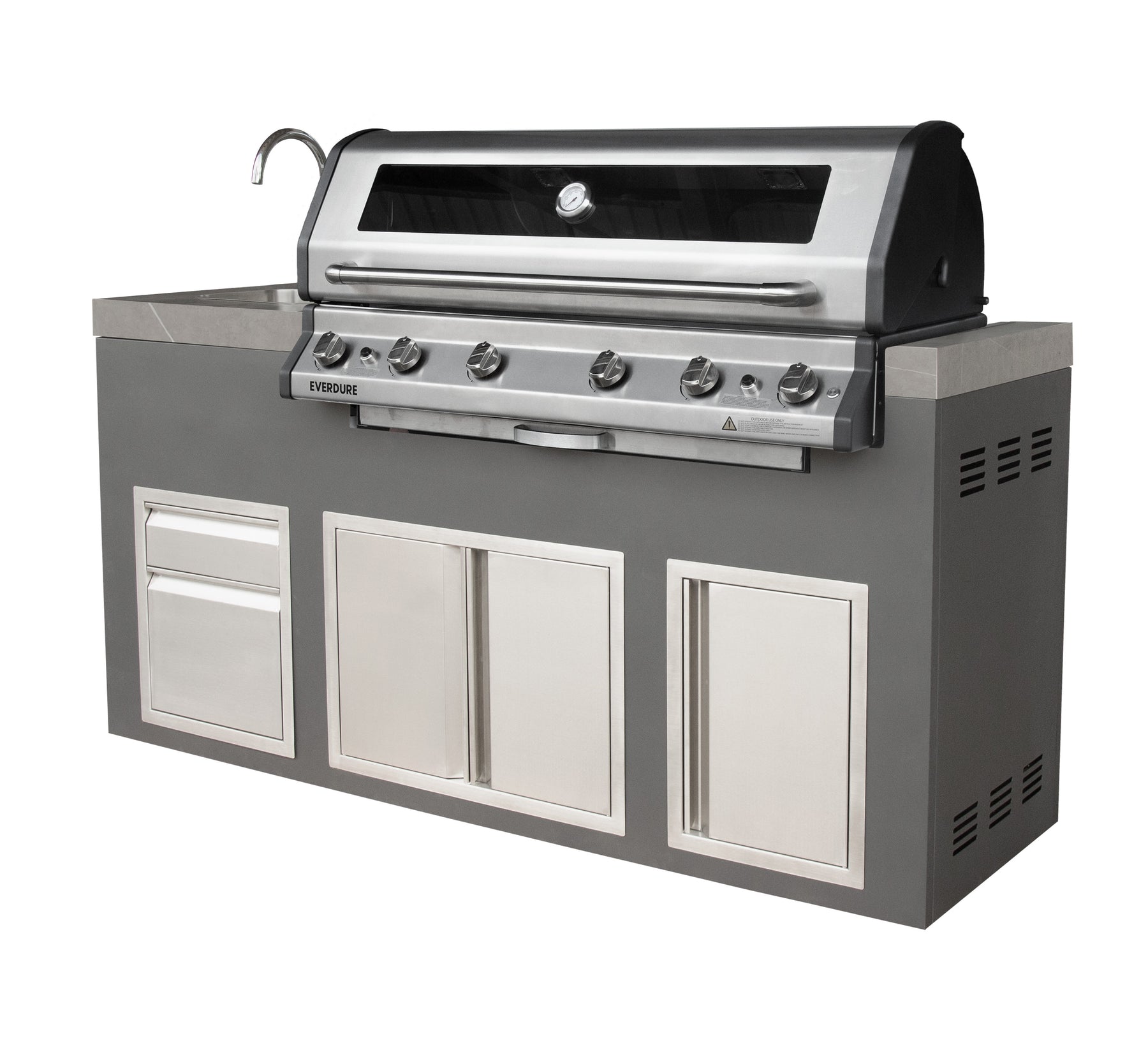

BBQ Module (EBMK6LPG-BBQ & EBMK6NGG-BBQ)
• Width: 1938mm
• Depth: 598mm
• Height: 950mm

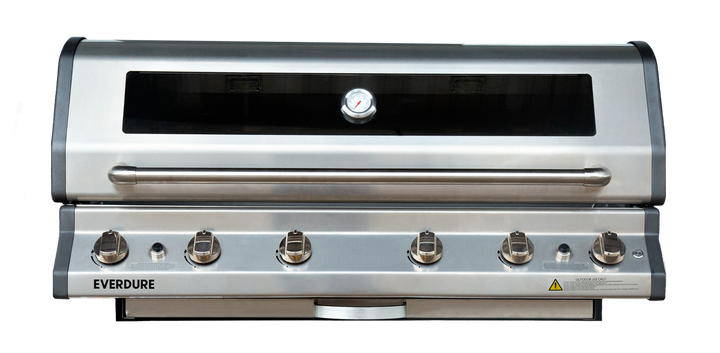

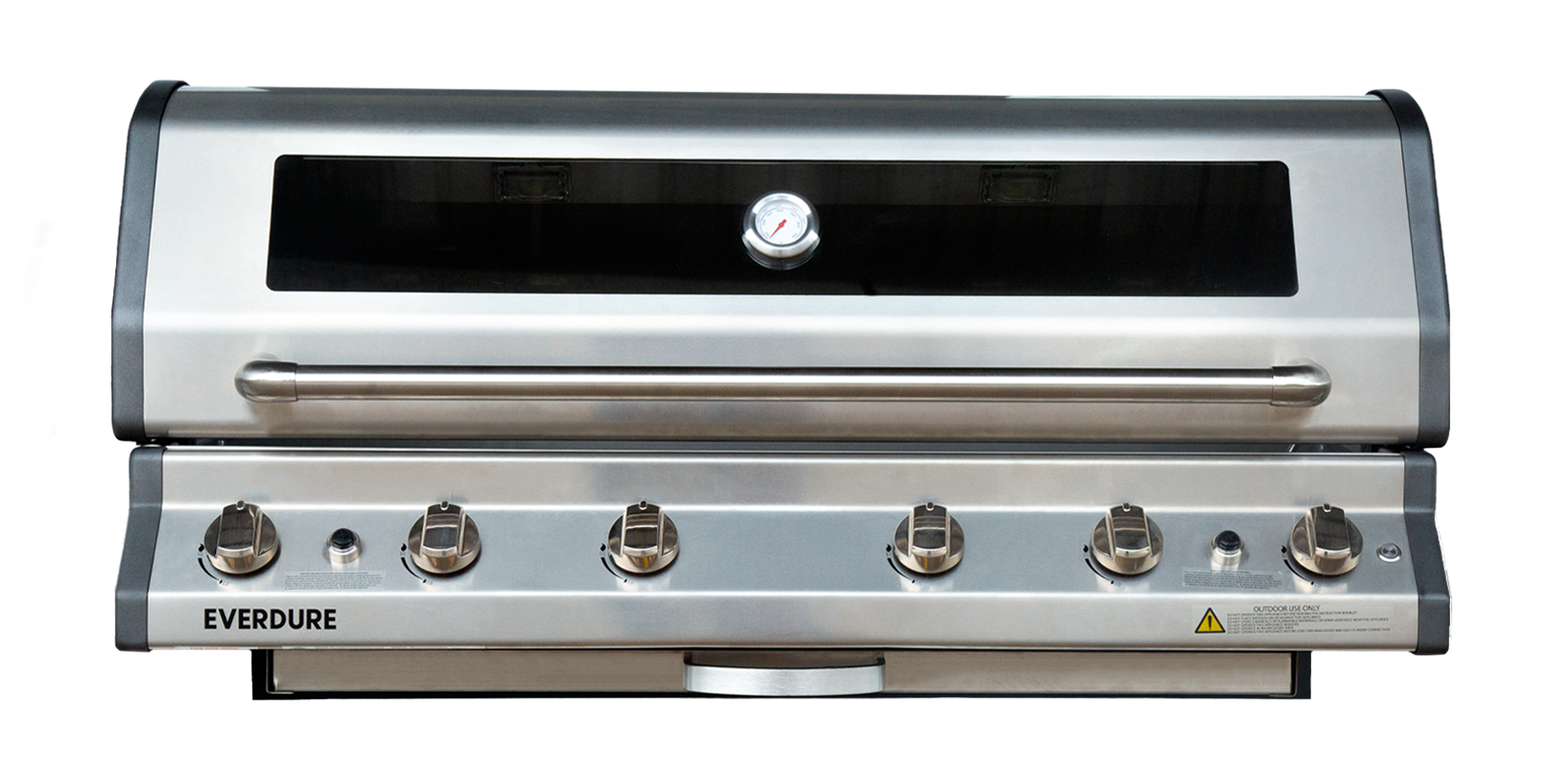

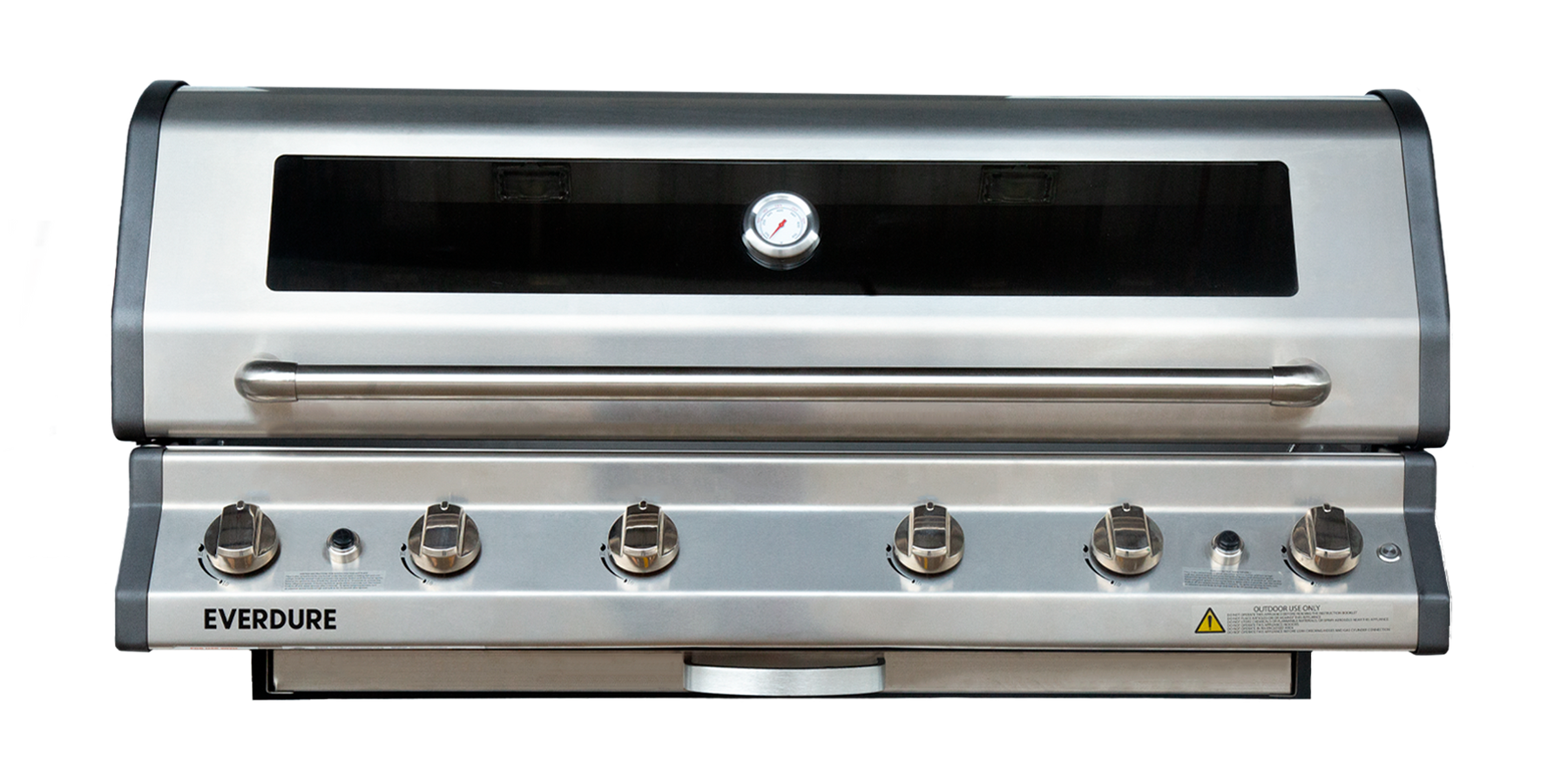

BBQ Built-In (NBLPC-17 & NBNGC-17)
• Width: 1195mm
• Depth: 587mm – Closed (614mm – Open)
• Height: 562mm – Closed (646mm – Open)

Beverage Cooler Module (EBCMG)
• Width: 1140mm
• Depth: 598mm
• Height: 950mm

Beverage Cooler (NBC208SS & NBC208HFSS)
• Width: 900mm
• Depth: 500mm
• Height: 840mm

For information on cleaning your barbeque, consult the barbeque manual.

For information on cleaning your beverage cooler, consult the beverage cooler manual.
